Silicon Insulation Accessories Series

  • SOCOME

Availability:
Quantity:

Fuse Cutout and tension load Fuse Cutout are outdoor high voltage protection facilities. The fuse is intalled at high voltage side of transformer or branch line of distribution line to protect transformer or transmission line from short circuit is installed at both ends of insulation bracket, moving contact is installed at both ends of fuse tube. Fuse tuba is consist of two parts. Arcing extinguish tube in inner side and epoxy glass tube outside. Tension load Fuse Cutout increase the flesxibla auxiliary contact and arcing-extinguish shield to break or connect load current.


The Expulsion Fuse Cutout is a low cost line protection. primarily used on remote overhead electrical transmission lines. The visual display of the status of the Fuse Cutout quickly and accurately helps field Inspectors to locate the faulty segment of the overhead transmission line. Upon clearing of the line fault and replacing the fuse link, each of the phases can then be lndividually switched back Into operation using operating poles. which are available in desired lengths.



Product model description

SC  FP  1 - 15 100

a     b    c    d     e


a. Factory code

b. FP-Porcelain insulation; FC-Polymer insulation

c. Series No. of products

d. Rated voltage

e. Rated current

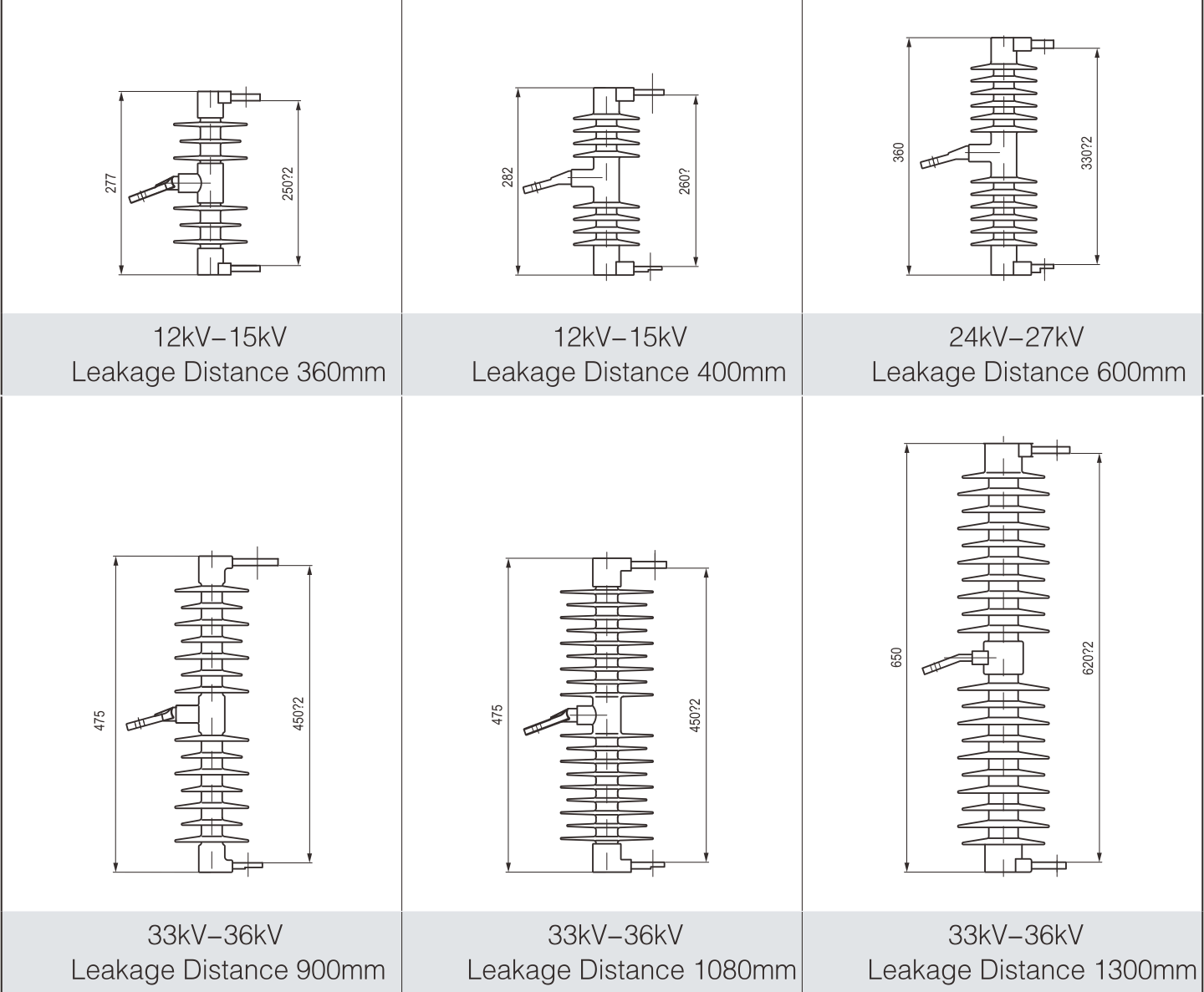

Silicon Insulation Accessories Series

fuse cutout construction

Main principle:

  1. Back rod;

  2. Installation Bracket;

  3. Squar bolts M 10•130;

  4. Squar bolts M12•40;

  5. Birdproof-design insulator

    Higher insulation characteristics than ANSi distribution-cutout standards;

  6. One-piece channel

    Heavy galvanized steel (which is also used for inserts, hangers, and structural bolts and nuts);

  7. Fuse tube

    Features MultiWind™- liner that's virtually impervious to water ingress. Special UV resistant finish as-sureslonglife;

  8. Input Parallel-groove connector

    Tinplated cast red brass. For ease of conductor connection, accommodates two conductors of unlike size in a single connector. Other styles of connectors are also available;

  9. Upper contacts

    Silver-to silver; stainless-steel spring provides high contact pressure;

  10. Rugged attachment hooks

    For Loadbuster guide tube during closing;

  11. Output Parallel-groove connector

    Tinplated cast red brass. For ease of conductor connection, accommodates two conductors of unlike size in a single connector. Other styles of connectors are also available;

  12. Toggle joint

    Assures reliable dropout after operation;



Rich Exporting Experience

We have exported to 50 countries and obtained positive feedback and praises. Our professional technical and sales team also equipped with rich operation experience.



High Quality Guarantee

Strict inspection of product quality before shipment and track the life of the product. We also have passed ISO, CE, ROHS Certifications.



On-time Delivery


Good faith to the customer is our operating purposes. According to the requirements of customers, we strictly request the delivery time of contracts, making sure we delivery on time.


Sample Free


Sample for your reference available. We offer samples without sample fee. If you want to customize special one, the sample fee will be happened.


After Sales Services

Offer OEMCustomized Service and best aftersales services for customer. Anything about our company and products, free to contact us and we will try our best to help you out.








fuse cutout application


fuse cutout application



Socome Group Power Equipment Co.,Ltd is one of the greatest hightech enterprise specialized in research, development, production, sale of power equipment and lightning protection.

Our company have accumulated rich experience in the range of power equipment and lightning protection,and we are famous for abundant and advanced technology. Our company took the lead in pass ISO 9001 Certificate of Quality Management System UL, CE and ROHS certificate.
