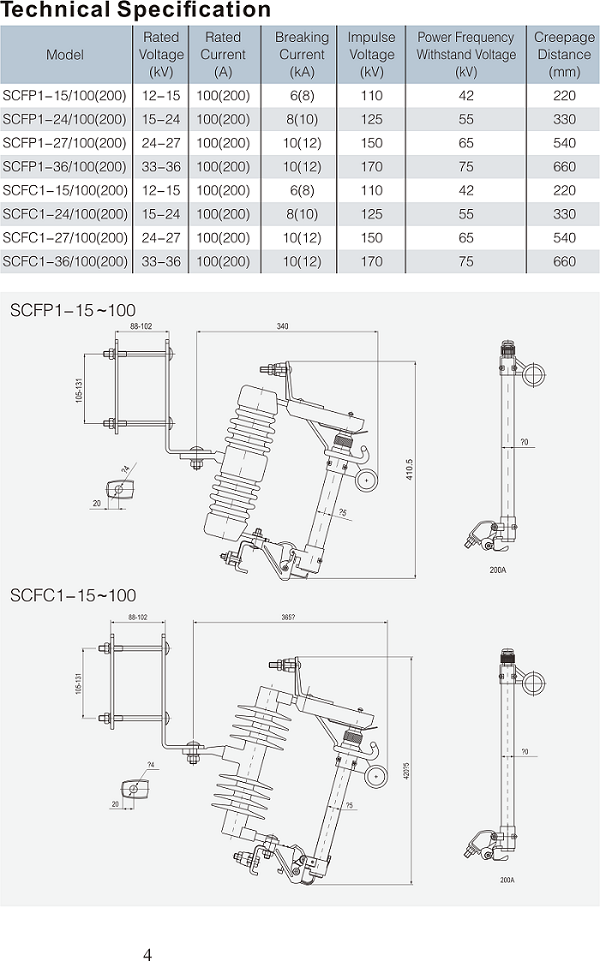

SCFPC1 Series Fuse Cutout

Main principle:

1. Back rod;

2. Installation Bracket;

3. Squar bolts M 10•130;

4. Squar bolts M12•40;

5. Birdproof-design insulator

   Higher insulation characteristics than ANSi distribution-cutout standards;

6. One-piece channel

   Heavy galvanized steel (which is also used for inserts, hangers, and structural bolts and nuts);

7. Fuse tube

   Features MultiWind™- liner that's virtually impervious to water ingress. Special UV resistant finish as-sureslonglife;

8. Input Parallel-groove connector

   Tinplated cast red brass. For ease of conductor connection, accommodates two conductors of unlike size in a single connector. Other styles of connectors are also available;

9. Upper contacts

   Silver－to silver; stainless-steel spring provides high contact pressure;

10. Rugged attachment hooks

    For Loadbuster guide tube during closing;

11. Output Parallel-groove connector

    Tinplated cast red brass. For ease of conductor connection, accommodates two conductors of unlike size in a single connector. Other styles of connectors are also available;

12. Toggle joint

    Assures reliable dropout after operation;
