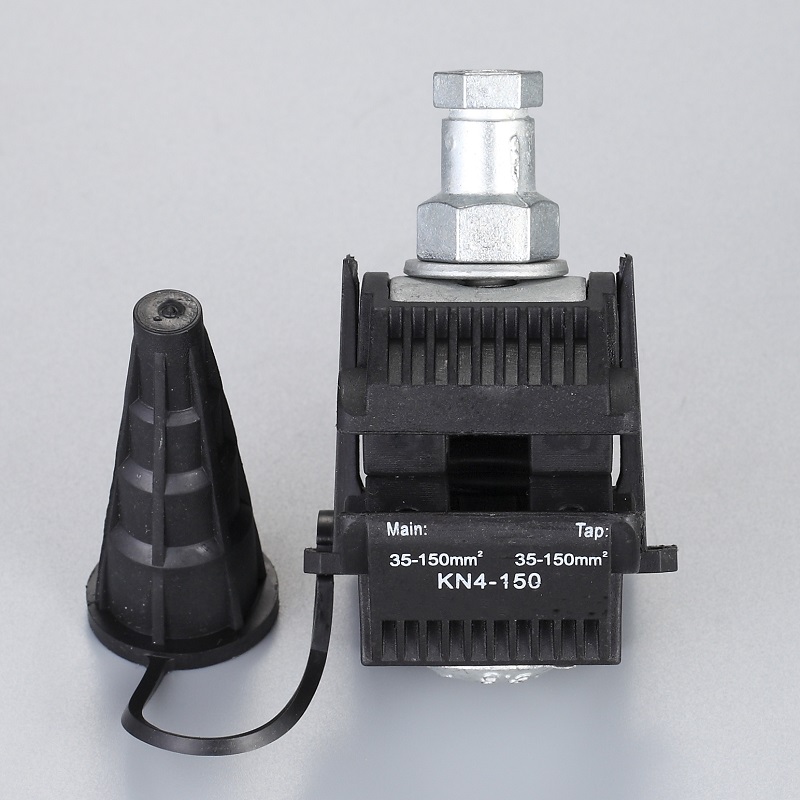

TheNU insulation piercing connectors are suitble to connect main and one, two tap conductor s 1 of section, how is written on NU body. Type without letter B serves to connect isolated conductors, with letter B bare conductors. NU for one tap conductor is equipped with cable termination cap PCEC16/120, for two output wires-no cap.
NU consists from two glass-fiber reinforced plastic parts, which are fitted with two brass tinned teeth's, which are coated with UV-curing silica grease and the teeth are fitted with rubber insulation. This set is associated with the bolt, nut and pinch fixation segment.
The terminals marked Tare equipped with tear head. The lower part of the clamp is designed to chamber, providing optimal ventilation of NU
Its self-seam frame is wet proof, water proof, and anti-corrosive, which can prolong the using life of insulated lead and connector.
Designed for all weather applications and easy to install.
NU had passed 6KV test under water fori Min.
Standard: EN 50483-4, NFC 33-020, NFC 33-004
