DTL-4
SOCOME
| Quantity: | |
|---|---|

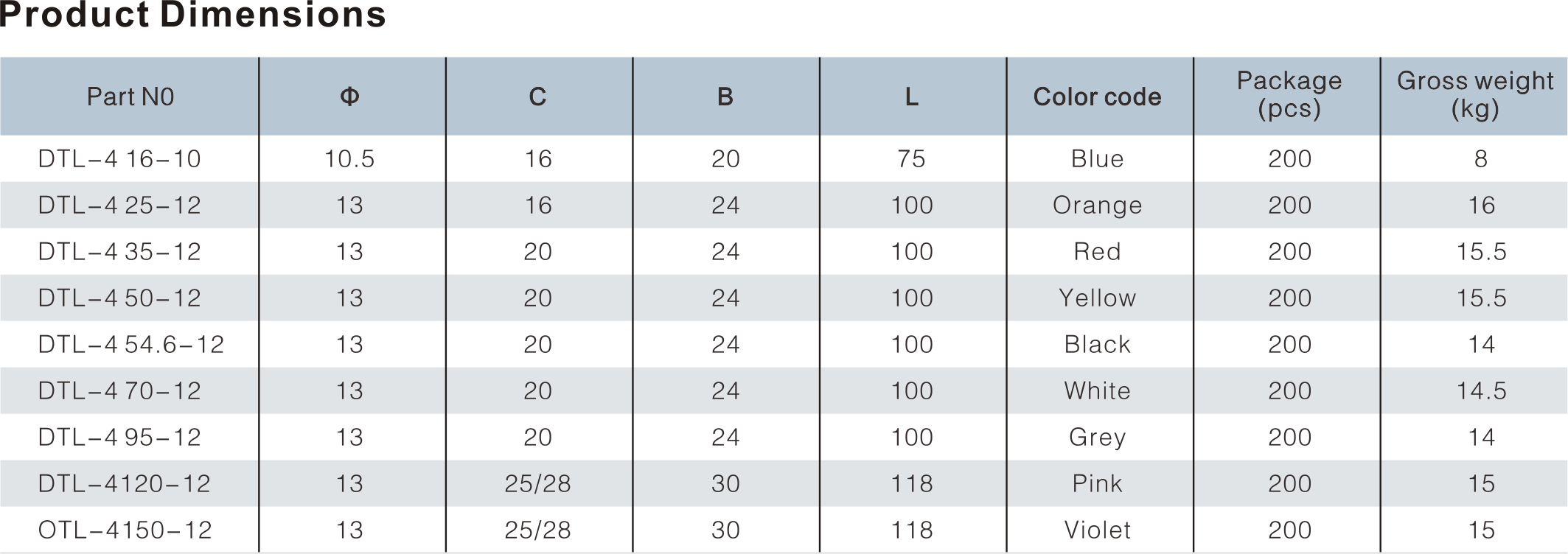

DTL-4 Pre-insulated Bimetal Lug
The DTL-4 pre-insulated bimetal lug is used to establish connection between LV-ABC cable and electrical equipments. Palm is made of 99.9% pure copper and sleeve is made of 99.6% pure aluminium.
Cross-section of conductor can be easily identified by the color code of elastomeric rings
Elastomeric ring and pre-filled grease enable super waterproof performance
Watertightness test carried out at 6kV for I minute underwater
Insulation tube is made of weather and UV resistant polymer
Standard: EN 50483-4 , NFC 33-021
DTL-4 Pre-insulated Bimetal Lug
The DTL-4 pre-insulated bimetal lug is used to establish connection between LV-ABC cable and electrical equipments. Palm is made of 99.9% pure copper and sleeve is made of 99.6% pure aluminium.
Cross-section of conductor can be easily identified by the color code of elastomeric rings
Elastomeric ring and pre-filled grease enable super waterproof performance
Watertightness test carried out at 6kV for I minute underwater
Insulation tube is made of weather and UV resistant polymer
Standard: EN 50483-4 , NFC 33-021
